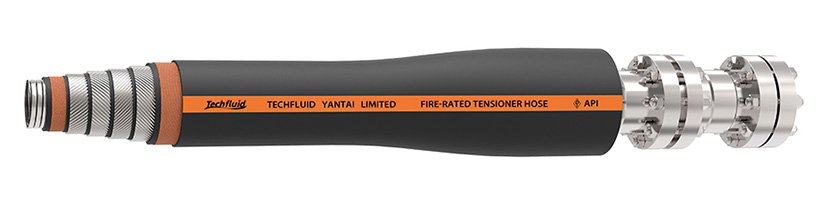

Fire-Rated Tensioner Hose, Oil Field Hose Type: NHG-SZ

Fire-Rated Tensioner Hose, Oil Field Hose

The fire-rated tensioner hose is also used as an oil field hose in offshore platforms for its outstanding fire protection. The hose can be equipped with an electric heating tracing feature to make it applicable to low-temperature operation conditions, and the outer cover can be equipped with a stainless-steel armored cover, stainless-steel wire, or a polyethylene helix cover according to specific requirements.

Advantages:

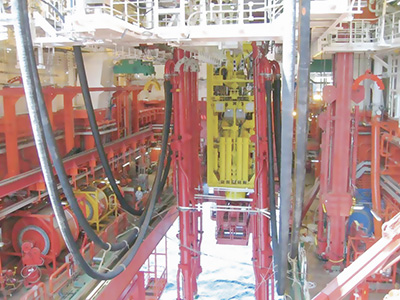

Application: The rubber hose is widely used for tensioner systems in deep water, semi-submersible drilling units to deliver flame resistant hydraulic oil, as well as fix the drill pipe position.

Temperature Range: I level, -25 ~ +82 ℃

Production Standard: API Spec 7K / API Spec 17K / GB/T 31065

API Standard: 7K-0106 / 17K-0008

Fire Protection Standard: Satisfy API Spec 16C standard, 704℃×30mins

Fire-Rated Tensioner Hose, Oil Field Hose

Flexible Level: FSL1

Maximum Length: 60m

Production Length Tolerance: 6.4m or under ± 64 mm, above 6.4m ± 1%

Construction:
  • Inner Layer: Stainless-steel
  • Tube: Nitrile rubber or HNBR (hydrogenated butadiene-acrylonitrile rubber) with excellent oil and corrosion resistance, thermal insulation, gas permeation protection
  • Reinforcement: High strength fabric cloth
  • Skeleton Layer: High strength steel wire
  • Fire Insulation: Glass fiber cloth
  • Cover: Chloroprene rubber, fire protection, abrasion, oil, UV, and ozone resistance, aging resistance
NHG-SZ Series Technical Parameters:
Specification Internal Diameter Outer Diameter WorkingPressure BurstPressure Safety MBR(storage) MBR(operation) Weight LengthMax
(inch) (mm) (inch) (mm) (bar) (psi) (bar) (psi) coefficien (m) (m) (Kg/m) (m)
NHG-SZ-102×21 4 102 7.64 194 207 3000 414 6,000 2.5 1.4 1.6 57.6 70
NHG-SZ-152×21 6 152 8.94 227 207 3000 414 6,000 2.5 1.6 1.8 82 70
NHG-SZ-203×21 8 203 11.81 300 207 3000 414 6,000 2.5 2.0 2.2 100 55
