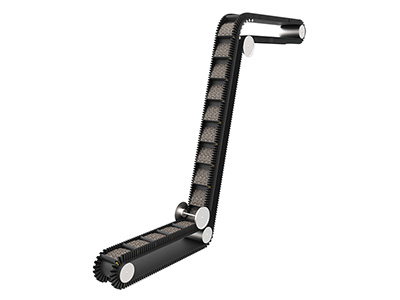

Corrugate Side Wall Conveyor Belt

The belt on corrugated side wall conveyors primarily features Dacron cotton blending canvas, nylon canvas, polyester canvas, and other canvas types. The sidewall is mounted on the conveyor and uses a vulcanization method for a better adhesion result.

Corrugate Side Wall Conveyor Belt
Features
  • Tear and impact resistant, stable performance
  • Widely used for coal mining, electric plants, metallurgy industry, chemical industry, food processing industries and more
  • Conveyance up to 90-degree incline for bulk materials.
  • Smaller footprint and wider application range
  • Requires less maintenance
  • The transportation product diameter range is tiny, starting at 400mm.

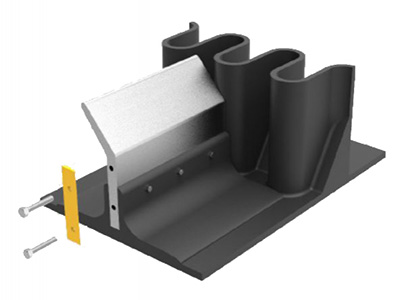

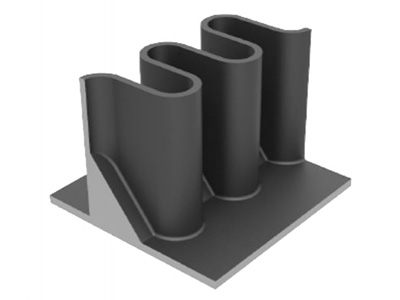

Side Wall Design:
Corrugate Side Wall Conveyor Belt
Corrugate Side Wall Conveyor Belt
Clapboard Design:
Corrugate Side Wall Conveyor Belt

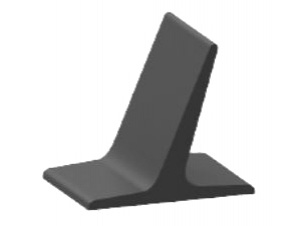

T Shape
Corrugate Side Wall Conveyor Belt

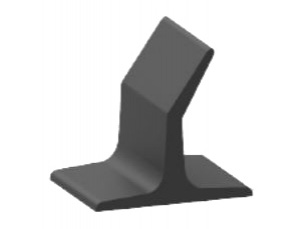

TS Shape
Corrugate Side Wall Conveyor Belt
C Shape
Corrugate Side Wall Conveyor Belt
TC Shape
Corrugate Side Wall Conveyor Belt
TCS Shape
Technical Parameters:
 Code No.  S60 S80 S100 S120 S160 S200 S240 S300
Side Wall Height mm  60 80 100 120 160 200 240 300
Side Wall Seat Width mm  50 50 50 50 75 75 75 90
Side Wall Range mm  44 44 44 44 68 68 68 84
Side Wall Wave Gauge mm  42 42 42 42 65 65 65 70
m2/M 0.67 0.83 1.4 1.86 2.95 3.83 5.2 7.73
Clapboard Height mm  55 75 90 110 145 180 220 280
Clapboard Seat Width mm  100 100 100 100 110 110 110 200
m2/M 0.6 1.35 1.5 1.85 2.35 3.56 5.25 7.4
Roller Diameter mm  400 500 630 630 800 1000 1000 1250
Sidewall Press Roller Dia. mm  400 500 630 630 800 1000 1000 1250
Left over mm  0-300
Combined Conveyor Technical Parameters
Belt Width B  Side Wall Height H  Clapboard Height H1  Side Wall Seat Width Bf  Clapboard Length Br  Left over R
400 60 55 50 180 60
80 75 50
100 90 50
500 80 75 50 250 75
100 90 50
120 110 50
650 100 90 50 350 100
120 110 50
160 140 75 300
800 120 110 50 460 120
160 140 75 410
200 180 75
1000 160 140 75 550 150
200 180 75
240 220 75
1200 160 140 75 690 180
200 180 75
240 220 75
300 280 105 630
