Hoses for Oil & Gas Sector

    1. Cement Hose
    2. Cement Hose

      The cement hose is mainly used to deliver cement slurry, Techfluid can add electric heating tracing feature if you have such requirement, and optional stainless steel armoured cover, stainless steel wire, polyethylene helix cover and so on.

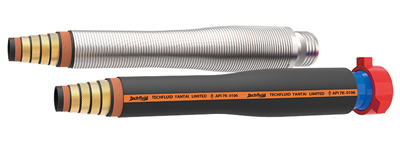

    1. Built-in Rotary and Vibrator Hose
    2. Built-in Rotary and Vibrator Hose

      The built-in rotary hose is the flexible connection between the drilling machine and the water faucet for vertical movement, as shown in the following picture.
      The vibrator hose is a flexible connection between the slurry pump and the vertical pipe with an exceptional vibration absorption.

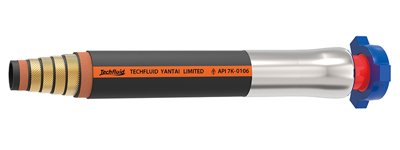

    1. Swaged Coupling Rotary and Vibrator Hose
    2. Swaged Coupling Rotary and Vibrator Hose

      The slurry hose is used as a flexible connection between the drilling machine and the water faucet for vertical movement. This vibrator hose is also a flexible connection between a slurry pump and a vertical pipe. It is widely used to deliver high pressure slurry for cementing pumps.

    1. Fire-Rated Tensioner Hose, Oil Field Hose
    2. Fire-Rated Tensioner Hose, Oil Field Hose

      The fire-rated tensioner hose is also used as an oil field hose in offshore platforms for its outstanding fire protection. The hose can be equipped with an electric heating tracing feature to make it applicable to low-temperature operation conditions, and the outer cover can be equipped with a stainless-steel armored cover, stainless-steel wire, or a polyethylene helix cover according to specific requirements.

    1. Underbalanced Drilling Hose
    2. Underbalanced Drilling Hose

      The underbalanced drilling hose is used for fluid delivery in unbalanced oil drilling. The drilling fluid may also contain nitrogen gas, industrial waste gas, air, the mixed gas of air and nitrogen, natural gas and more.

    1. Burner Boom Hose
    2. Burner Boom Hose

      The burner boom hose is mainly used to deliver fluid such as low sulfur mediums, acidic mediums, fluids containing aromatic hydrocarbons, and is also used to deliver, circulate, and drift gas.

    1. Hydraulic Hose
    2. Hydraulic Hose

      This hydraulic hose is designed for high pressure fluid transference, including ethyl alcohol, hydraulic oil, mineral oil, fuel oil, lubricating oil, emulsified liquid, ethylene glycol, high pressure steam and more.

    1. High Pressure Flexible Lines for Well Testing
    2. High Pressure Flexible Lines for Well Testing

      The JYG-SZ well testing hose is primarily used for drill-stem testing, and the hose structure is designed to take into account the acid and other fluid delivery mediums.

    1. Water Jetting Hose
    2. Water Jetting Hose

      Because it is difficult to move pile shoes once an automatic drilling platform has completed operations, the water jetting hose is designed to clean mud and debris around the pile shoe in order to pull the pile leg out faster and easier.

    1. Choke and Kill Hose
    2. Choke and Kill Hose

      Choke and kill hoses are the main component to ground and underground choke and kill systems. They are also the main component of drilling platform BOP (blowout prevention) systems. The choke and kill hose can be equipped with an electric heat tracing device, and users can choose stainless steel armored covers, stainless steel wire, polyethylene helix covers, and more as the outer cover.

    1. Submersible Pump Seawater Hose
    2. Submersible Pump Seawater Hose

      The submersible pump seater hose is used primarily for seawater lifting and delivery systems in offshore platforms. The hose connects to the submerged pump, and is responsible for seawater suction, as well as long-term pump weight loading.

    1. Flexible Drift Hose
    2. Flexible Drift Hose

      The flexible drift hose is mainly used to deliver fluid such as low sulfur medium, acid medium, fluid contains aromatic hydrocarbon, and also applies to gas delivering, circulating, drifting and etc.
