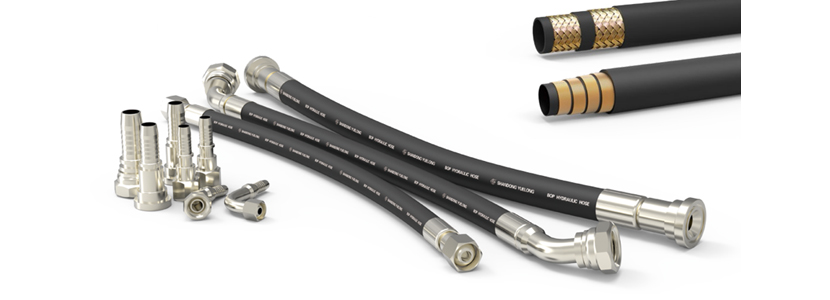

Hydraulic Hose YY2S / YY4B / YR35 / YR42

Hydraulic Hose

This hydraulic hose is designed for high pressure fluid transference, including ethyl alcohol, hydraulic oil, mineral oil, fuel oil, lubricating oil, emulsified liquid, ethylene glycol, high pressure steam and more.

Construction:
  • Tube: Black nitrile rubber with outstanding oil, thermal, and aging resistance
  • Reinforcement: High strength steel wire
  • Cover: Black chloroprene rubber with excellent fire protection, oil resistance, abrasive resistance, and aging resistance
Applicable Standard:

The hydraulic hose satisfies ISO 15540 & ISO 15541 fire protection standards, 30mins at 800℃

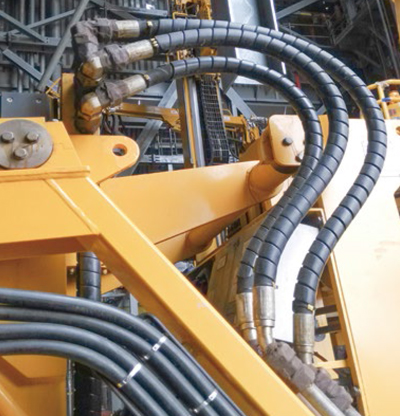

BOP Hydraulic Hose
Technical Parameters:
Code No. SAE  Size  Internal Diameter  O.D. Working Pressure  B.P. MBR  Temperature Range  Weight  Max. Length
mm mm bar bar mm ℃ kg/m m
YY1S 1SN 1/4" 6.3 14 225 900 100 -40 to +100 0.22 100
YY1S 1SN 5/16" 8 15 215 860 115 -40 to +100 0.26 100
YY1S 1SN 3/8" 10 18 180 720 130 -40 to +100 0.35 100
YY1S 1SN 1/2" 12.5 21 160 640 180 -40 to +100 0.43 100
YY1S 1SN 5/8" 16 24 130 520 200 -40 to +100 0.51 100
YY1S 1SN 3/4" 19 28 105 420 240 -40 to +100 0.64 100
YY1S 1SN 1" 25 36 87 348 300 -40 to +100 0.93 100
YY1S 1SN 1-1/4" 32 43 62 248 420 -40 to +100 1.23 40
YY1S 1SN 1-1/2" 38 50 50 200 500 -40 to +100 1.47 40
YY1S 1SN 2" 51 63 40 160 630 -40 to +100 1.86 40
YY2S 2SN 1/4" 6.3 15 400 1600 100 -40 to +100 0.34 100
YY2S 2SN 5/16" 8 17 350 1400 115 -40 to +100 0.41 100
YY2S 2SN 3/8" 10 19 330 1320 130 -40 to +100 0.55 100
YY2S 2SN 1/2" 12.5 23 275 1100 180 -40 to +100 0.66 100
YY2S 2SN 5/8" 16 26 250 1000 200 -40 to +100 0.76 100
YY2S 2SN 3/4" 19 30 215 860 240 -40 to +100 0.95 100
YY2S 2SN 1" 25 38 165 660 300 -40 to +100 1.4 100
YY2S 2SN 1-1/4" 32 47 125 500 420 -40 to +100 1.96 40
YY2S 2SN 1-1/2" 38 53.5 90 360 500 -40 to +100 2.18 40
YY2S 2SN 2" 51 66 80 320 630 -40 to +100 2.71 40
YY4B 4SP 3/8" 10 21 445 1780 180 -40 to +121 0.76 60
YY4B 4SP 1/2" 12.5 24 415 1660 230 -40 to +121 0.88 60
YY4B 4SP 5/8" 16 28 350 1400 250 -40 to +121 1.1 60
YY4B 4SP 3/4" 19 32 350 1400 300 -40 to +121 1.47 60
YY4B 4SP 1" 25 39 280 1120 340 -40 to +121 1.98 60
YY4B 4SP 1-1/4" 32 50 210 840 460 -40 to +121 2.55 40
YY4B 4SP 1-1/2" 38 56 185 740 560 -40 to +121 3.26 40
YY4B 4SP 2" 51 69 165 660 660 -40 to +121 4.92 40
YR35 R13 3/4" 19 32 350 1400 240 -40 to +121 1.65 60
YR35 R13 1" 25 39 350 1400 300 -40 to +121 2.25 60
YR35 R13 1-1/4" 32 50 350 1400 420 -40 to +121 3.6 40
YR35 R13 1-1/2" 38 58 350 1400 500 -40 to +121 4.75 40
YR35 R13 2" 51 71 350 1400 640 -40 to +121 6.9 40
YR42 R15 3/4" 19 35.5 420 1680 265 -40 to +121 1.85 60
YR42 R15 1" 25 42 420 1680 330 -40 to +121 2.9 60
YR42 R15 1-1/4" 32 50 420 1680 445 -40 to +121 4.2 40
YR42 R15 1-1/2" 38 58 420 1680 530 -40 to +121 5.6 40
