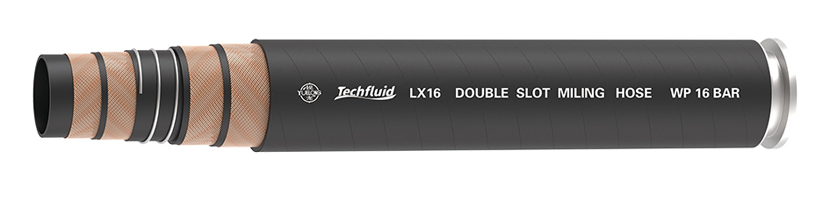

Rubber Hoses for Hose Reel Type: LX16
Application:

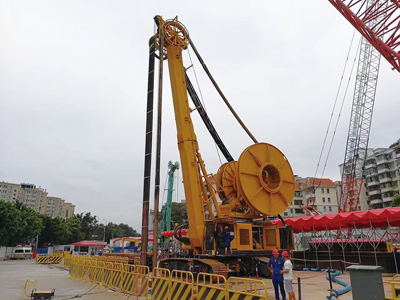

This rubber hose for hose reels is designed for use in double slot milling machines for sand and slurry carrying with a 30%~40% concentration and alkali resistance of PH8~11.
Temperature Range:
-25℃ ~+80℃
Construction:
- Tube: Black, abrasion resistant NR/BR rubber with an excellent thermal insulation.
- Reinforcement: High strength synthetic fiber cord and helix steel wire
- Cover: Black, abrasion resistant CR/BR rubber, aging resistant
Technical Parameters:
| Code No. | Size | I.D. | O.D. | W.P. | B.P. | N.P. | Safety factor | MBR | Weight | LengthMax | ||
| (inch) | (mm) | (mm) | (bar) | (psi) | (bar) | (psi) | (Kpa) | (mm) | (Kg/m) | (m) | ||
| LX 16-152-Ⅰ | 6〞 | 152 | 219 | 16 | 232 | 64 | 928 | -85 | 4 | 800 | 34 | 100 |
| LX 16-152-Ⅱ | 6〞 | 152 | 200 | 16 | 232 | 64 | 928 | -85 | 4 | 800 | 26 | 100 |
