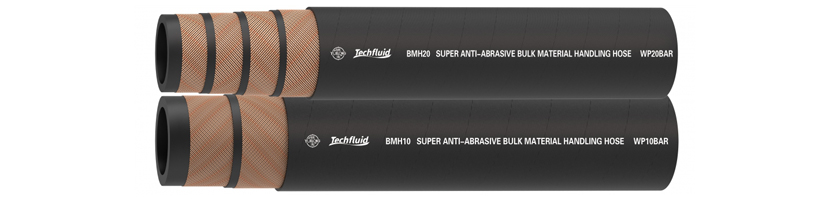

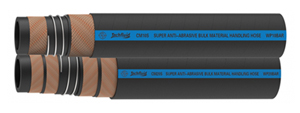

Anti-Abrasive Bulk Material Handling Hose Type CM10/CM20

Anti-Abrasive Bulk Material Handling Hose
Application:

The abrasion resistant bulk material handling hose is designed to transport dry cement and other grinding materials. The wear and tear levels meet ISO4649 standards at ≤ 35mm³.

Temperature Range:

-35℃ ~ +75℃

Construction:
  • Tube: Black composite rubber, thickened, abrasion resistant, static resistant
  • Reinforcement: High strength synthetic fiber cord or steel cord
  • Cover: Black composite rubber with a cloth texture, abrasion and aging resistant
CM10 Technical Parameters:
Code No. Size(inch) I.D.(mm) O.D.(mm) W.P. B.P. Safety factor MBR(mm) Weight(kg/m) Length max.
(bar) (psi) (bar) (psi)
CM10-19 3/4" 19 31 10 150 30 450 3 110 0.6 100
CM10-25 1" 37 37 10 150 30 450 3 150 0.8 100
CM10-32 1-1/4" 32 46 10 150 30 450 3 200 1.1 100
CM10-38 1-1/2" 38 52 10 150 30 450 3 250 1.3 100
CM10-51 2" 66 66 10 150 30 450 3 350 1.8 100
CM10-64 2-1/2" 64 79 10 150 30 450 3 420 2.2 100
CM10-76 3" 92 92 10 150 30 450 3 500 2.5 100
CM10-89 3-1/2" 89 106 10 150 30 450 3 550 3 100
CM10-102 4" 119 119 10 150 30 450 3 650 3.4 100
CM10-127 5" 146 146 10 150 30 450 3 800 5 100
CM10-152 6" 171 171 10 150 30 450 3 950 6 100
CM10-203 8" 224 224 10 150 30 450 3 1300 8.4 100
CM20 Series
Code No. Size(inch) I.D.(mm) O.D.(mm) W.P. B.P. Safety factor MBR(mm) Weight(kg/m) Length max.
(bar) (psi) (bar) (psi)
CM20-19 3/4" 19 31 20 300 60 900 3 110 0.6 100
CM20-25 1" 25 37 20 300 60 900 3 150 0.8 100
CM20-32 1-1/4" 32 46 20 300 60 900 3 200 1.1 100
CM20-38 1-1/2" 38 53 20 300 60 900 3 250 1.3 100
CM20-51 2" 51 67 20 300 60 900 3 350 1.8 100
CM20-64 2-1/2" 64 80 20 300 60 900 3 420 2.2 100
CM20-76 3" 76 92 20 300 60 900 3 500 2.5 100
CM20-89 3-1/2" 89 106 20 300 60 900 3 550 3 100
CM20-102 4" 102 122 20 300 60 900 3 650 4.1 100
CM20-127 5" 127 148 20 300 60 900 3 800 5.1 100
CM20-152 6" 152 173 20 300 60 900 3 950 6 100
