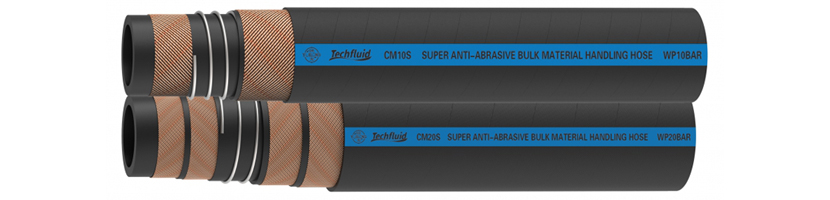

Reinforced Anti-Abrasive Bulk Material Handling Hose Type:CM10S/CM20S

Reinforced Anti-Abrasive Bulk Material Handling Hose
Application:

The reinforced abrasion resistant bulk material handling hose is developed for suction and discharge of extremely abrasive materials, with the maximum negative pressure reaching -0.9bar, and the wear and tear level meeting the ISO4649 standards at ≤35mm³.

Temperature Range:

-25℃ ~ +75℃

Construction:
  • Tube: Black composite rubber that is thicker than other tubes and features an outstanding abrasion resistance
  • Reinforcement: High strength fiber cord and helix steel wire, optional static resistant metal wire to meet your requirements
  • Cover: Black composite rubber in cloth texture, abrasion resistant, and aging resistant.
Technical Parameters:

CM10S Series Technical Parameters:

Code No. Size(inch) I.D.(mm) O.D.(mm) W.P. B.P. Safety factor MBR(mm) Weight(kg/m) Length max. N.P.(kPa)
(bar) (psi) (bar) (psi)
CM10S-38 1-1/2" 38 53 10 150 30 450 3 230 1.7 100 -90
CM10S-51 2" 51 66 10 150 30 450 3 230 2.3 100 -90
CM10S-76 3" 76 93 10 150 30 450 3 360 3.6 100 -90
CM10S-89 3-1/2" 89 106 10 150 30 450 3 450 4.2 100 -90
CM10S-102 4" 1002 120 10 150 30 450 3 540 5.6 100 -90
CM10S-127 5" 127 146 10 150 30 450 3 675 7.1 100 -90
CM10S-152 6" 152 172 10 150 30 450 3 900 9.7 100 -90

CM20S Series

Code No. Size(inch) I.D.(mm) O.D.(mm) W.P. B.P. Safety factor MBR(mm) Weight(kg/m) Length max. N.P.(kPa)
(bar) (psi) (bar) (psi)
CM20S-38 1-1/2" 38 53 10 150 30 450 3 230 1.7 100 -90
CM20S-51 2" 51 67 10 150 30 450 3 230 2.3 100 -90
CM20S-76 3" 76 94 20 300 60 900 3 360 4.0 100 -90
CM20S-89 3-1/2" 89 107 20 300 60 900 3 450 4.7 100 -90
CM20S-102 4" 102 121 20 300 60 900 3 540 6.1 100 -90
CM20S-127 5" 127 149 20 300 60 900 3 675 8.1 100 -90
CM20S-152 6" 152 175 20 300 60 900 3 900 11.1 100 -90
