Sandblast Hose Type:PS10/PS16/PS20

Sandblast Hose
Sandblast Hose
Application:

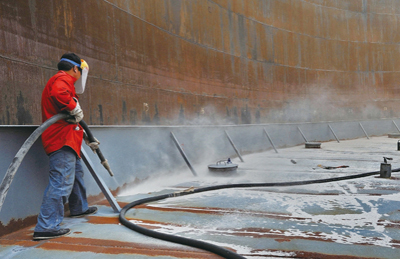

Sandblast hoses are designed to deliver highly abrasive materials such as quartz sand, iron sand, and more. The abrasion level meets ISO4649 standards at ≤80mm³.

Temperature Range:

-25℃~+75℃

Construction:
  • Tube: Black composite rubber with static conductivity and excellent abrasion resistance
  • Reinforcement: High strength polyester cord, and optional conductive copper wire
  • Cover: Black composite rubber in cloth texture, abrasion and aging resistance
PS10 Series Technical Parameters:
Code No.  Size (inch)  I.D.  (mm) O.D. (mm)  W.P. (bar) (psi)  B.P.  (bar) (psi) Safety Factor MBR (mm) Weight (Kg/m)  Max. Length (m)
PS 10-19 3/4" 19 32 10 150 30 450 3 110 0.65 100
PS 10-25 1" 25 38 10 150 30 450 3 150 0.8 100
PS 10-32 1-1/4" 32 46 10 150 30 450 3 200 1.09 100
PS 10-38 1-1/2" 38 52 10 150 30 450 3 250 1.26 100
PS 10-51 2" 51 66 10 150 30 450 3 350 1.74 100
PS 10-64 2-1/2" 64 79 10 150 30 450 3 420 2.12 100
PS 10-76 3" 76 91 10 150 30 450 3 500 2.47 100
PS 10-89 3-1/2" 89 105 10 150 30 450 3 550 3.10 61
PS 10-102 4" 102 118 10 150 30 450 3 650 3.51 61
PS 10-127 5" 127 143 10 150 30 450 3 800 4.30 61
PS 10-152 6" 152 169 10 150 30 450 3 950 5.09 61
PS 10-203 8" 203 224 10 150 30 450 3 1300 8.51 40
PS 10-254 10" 254 276 10 150 30 450 3 1500 10.53 40
PS 10-305 12" 305 327 10 150 30 450 3 1700 12.55 40
PS16 Series
Code No.  Size (inch)  I.D.  (mm) O.D. (mm)  W.P.  (bar) (psi) B.P. (bar) (psi)  Safety Factor MBR (mm) Weight (Kg/m)  Max. Length (m)
PS 16-19 3/4" 19 32 16 240 48 720 3 110 0.65 100
PS 16-25 1" 25 38 16 240 48 720 3 150 0.80 100
PS 16-32 1-1/4" 32 46 16 240 48 720 3 200 1.09 100
PS 16-38 1-1/2" 38 52 16 240 48 720 3 250 1.26 100
PS 16-51 2" 51 66 16 240 48 720 3 350 1.74 100
PS 16-64 2-1/2" 64 79 16 240 48 720 3 420 2.12 100
PS 16-76 3" 76 91 16 240 48 720 3 500 2.47 100
PS 16-89 3-1/2" 89 106 16 240 48 720 3 550 3.10 61
PS 16-102 4" 102 119 16 240 48 720 3 650 3.51 61
PS 16-127 5" 127 147 16 240 48 720 3 800 5.15 61
PS 16-152 6" 152 173 16 240 48 720 3 950 6.08 61
PS 16-203 8" 203 225 16 240 48 720 3 1300 8.51 40
PS20 Series
Code No. Size (inch) I.D. (mm) O.D. (mm) W.P. B.P. Safety factor MBR (mm) Weight (Kg/m) Max. Length (m)
(bar) (psi) (bar) (psi)
PS20-19 3/4〞 19 31 20 300 60 900 3 110 0.6 100
PS20-25 1〞 25 37 20 300 60 900 3 150 0.8 100
PS20-32 1-1/4〞 32 46 20 300 60 900 3 210 1.1 100
PS20-38 1-1/2〞 38 53 20 300 60 900 3 250 1.3 100
PS20-51 2〞 51 67 20 300 60 900 3 350 1.8 100
PS20-64 2-1/2〞 64 80 20 300 60 900 3 420 2.2 100
PS20-76 3〞 76 92 20 300 60 900 3 500 2.5 100
PS20-89 3-1/2〞 89 106 20 300 60 900 3 550 3.1 100
PS20-102 4〞 102 122 20 300 60 900 3 650 4.2 100
PS20-127 5〞 127 148 20 300 60 900 3 800 5.1 100
PS20-152 6〞 152 173 20 300 60 900 3 950 6.1 100
