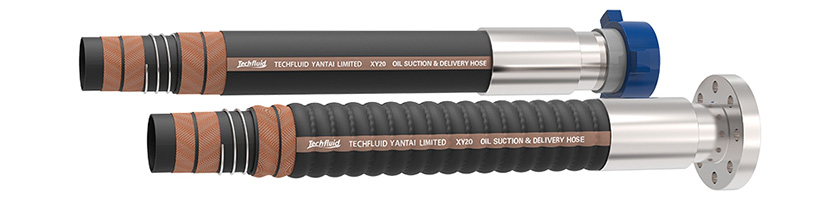

Oil Suction & Delivery Hose Type: XY10/XY20

Oil Suction & Delivery Hose

Our oil suction and delivery hoses are designed for the suction and discharge of oil as well as for the transportation of gasoline, diesel, fuel containing up to 50% aromatic hydrocarbons, sea water, fresh water, slurry, air, and other mediums.

Construction:
  • Tube: Black nitrile rubber with oil resistance, salt (sea water) resistance, thermal resistance, acid and alkali resistance and so on;
  • Reinforcement: High strength composite fiber with helical steel wire and conductive copper wire;
  • Cover: Black chloroprene rubber and butadiene rubber composite, with excellent abrasive resistance, ozone resistance, oil and thermal resistance, anti-aging properties, etc.
Temperature Range:

-30℃ ~ + 100℃

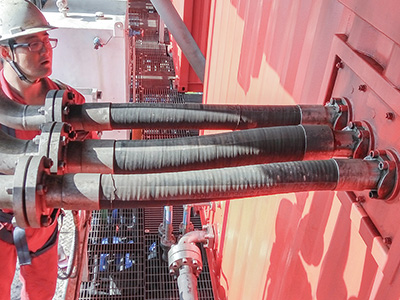

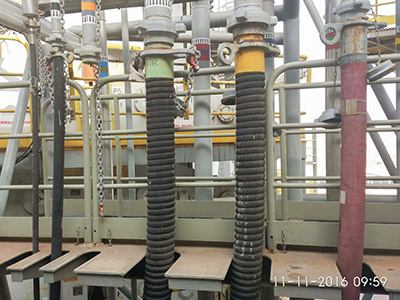

Oil Suction & Delivery Hose Oil Suction & Delivery Hose
XY10 Series Technical Parameters:
I.D. (inch) (mm)  O.D. (inch) (mm)  W.P. (bar) (psi)  B.P. (bar) (psi)  Safety Factor MBR (mm) Weight (Kg/m)  Max. Length (mm)  N.P. (Kpa)
3/4 19 1.22 31 10 150 40 600 4 85 0.7 100 -90
1 25 1.46 37 10 150 40 600 4 100 1.1 100 -90
1-1/4 32 1.77 47 10 150 40 600 4 130 1.3 100 -90
1-1/2 38 2.00 53 10 150 40 600 4 150 1.5 100 -90
2 51 2.60 66 10 150 40 600 4 300 2.1 100 -90
2-1/2 64 3.11 79 10 150 40 600 4 350 2.2 100 -90
3 76 3.62 92 10 150 40 600 4 400 3.1 100 -90
4 102 4.84 123 10 150 40 600 4 550 5.2 100 -90
5 127 5.90 150 10 150 40 600 4 650 7.3 100 -90
6 152 6.90 175 10 150 40 600 4 800 8.9 100 -90
8 203 9.25 238 10 150 40 600 4 1,100 18 100 -90
XY20 Series Technical Parameters:
I.D. (inch) (mm)  O.D. (inch) (mm)  W. P. (bar) (psi)  B.P. (bar) (psi)  Safety Factor  MBR (mm) Weight (Kg/m)  Max. Length (m)  N.P. (Kpa)
3/4 19 1.22 31 20 300 80 1,200 4 85 0.7 60 -90
1 25 1.46 37 20 300 80 1,200 4 100 1.1 100 -90
1-1/4 32 1.77 47 20 300 80 1,200 4 130 1.3 100 -90
1-1/2 38 2.00 53 20 300 80 1,200 4 150 1.5 100 -90
2 51 2.76 70 20 300 80 1,200 4 300 2.5 100 -90
2-1/2 64 3.27 83 20 300 80 1,200 4 350 3.1 60 -90
3 76 3.82 97 20 300 80 1,200 4 400 4.0 100 -90
4 102 5.08 129 20 300 80 1,200 4 550 6.5 100 -90
5 127 6.06 154 20 300 80 1,200 4 650 8.3 100 -90
6 152 7.09 180 20 300 80 1,200 4 800 10.6 100 -90
