Chemical Suction and Delivery Hose Type: CU16/CX16

Chemical Suction and Delivery Hose
Chemical Suction and Delivery Hose
Advantages:
Application:
Chemical Suction and Delivery Hose

The chemical suction and delivery hose is suitable for most corrosive chemical solvents, alcohol suction and delivery, and transportation of acidic and chemical products with concentrations up to 98%.

Temperature Range:

-30℃~ + 80℃

Construction:
  • Tube: Transparent, UHMWPE composite rubber
  • Reinforcement: High strength synthetic fiber, helix wire and conductive copper wire
  • Cover: EPDM rubber- blue color, abrasion resistant, ozone resistant, weather resistant, aging resistant
Technical Parameters:
CU16 Series Technical Parameters:
Code No.  Size (inch)  I.D. (mm)  O.D. (mm)  W.P. B.P. Safety Factor  MBR (mm)  Weight (Kg/m)  Max. Length (m)  N.P. (Kpa)
(bar) (psi) (bar) (psi)
CU16-19 3/4 19 30 16 240 64 960 4 130 0.7 100 -90
CU16-25 1 25 36 16 240 64 960 4 150 0.9 100 -90
CU16-32 1-1/4 32 43 16 240 64 960 4 200 1.1 100 -90
CU16-38 1-1/2 38 49 16 240 64 960 4 225 1.3 100 -90
CU16-51 2 51 62 16 240 64 960 4 275 1.7 100 -90
CU16-64 2.5 64 76 16 240 64 960 4 350 2.1 100 -90
CU16-76 3 76 89 16 240 64 960 4 400 2.8 100 -90
CU16-102 4 102 116 16 240 64 960 4 800 3.8 100 -90
CU16-127 5 127 144 16 240 64 960 4 1300 6.5 100 -90
CU16-152 6 152 171 16 240 64 960 4 1600 8.1 100 -90

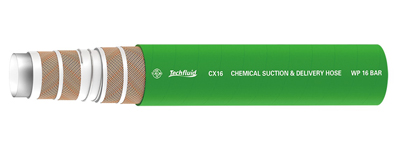

CX16 Series

Code No. Size (inch) I.D. (mm) O.D. (mm) W.P. B.P. Safety factor MBR (mm) Weight (Kg/m) LengthMax (m) N.P. (Kpa)
(bar) (psi) (bar) (psi)
CX16-19 3/4 19 30 16 240 64 960 4 130 0.7 100 -90
CX16-25 1 25 36 16 240 64 960 4 150 0.9 100 -90
CX16-32 1-1/4 32 43 16 240 64 960 4 200 1.1 100 -90
CX16-38 1-1/2 38 49 16 240 64 960 4 225 1.3 100 -90
CX16-51 2 51 62 16 240 64 960 4 275 1.7 100 -90
CX16-64 2-1/2 64 76 16 240 64 960 4 275 2.1 100 -90
CX16-76 3 76 89 16 240 64 960 4 400 2.8 100 -90
CX16-102 4 102 116 16 240 64 960 4 800 3.8 100 -90
CX16-127 5 127 144 16 240 64 960 4 1300 6.5 100 -90
CX16-152 6 152 171 16 240 64 960 4 1600 8.1 100 -90
