Acid Suction Hose Type:AA10S/AA16S/AA20S

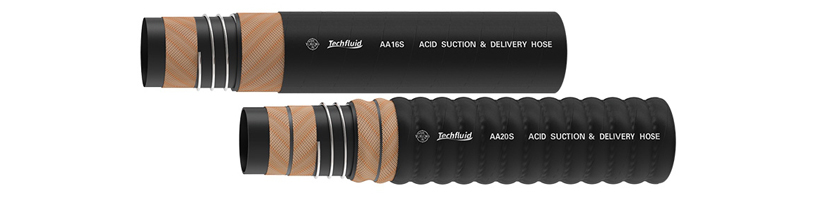

Acid Suction Hose
Application:

Acid suction hoses are designed to suck and discharge acid solutions such as sulfuric acid at no higher than 40% concentration, 30% hydrochloric acid, 15% sodium hydroxide solution and other diluted acid and alkali solutions with similar concentrations (not including nitric acid). The negative pressure is -0.9 bar.

Temperature Range:

-20℃~+70℃

Construction:
  • Tube: Black composite rubber with excellent thermal and acid resistance
  • Reinforcement: High strength fiber cord and helix steel wire
  • Cover; Black composite rubber in cloth texture, acid and alkali resistance, abrasion resistance, aging resistance
Technical Parameters:
AA10S Series Technical Parameters:
Code No. Size I.D. O.D. W.P. B.P. N.P. Safety factor MBR Weight LengthMax
(inch) (mm) (mm) (bar) (psi) (bar) (psi) (Kpa) (mm) (Kg/m) (m)
AA10S-19 3/4〞 19 30 10 150 30 450 -90 3 90 0.8 100
AA10S-25 1〞 25 36 10 150 30 450 -90 3 100 1 100
AA10S-32 1-1/4〞 32 43 10 150 30 450 -90 3 130 1.2 100
AA10S-38 1-1/2〞 38 49 10 150 30 450 -90 3 150 1.4 100
AA10S-51 2〞 51 63 10 150 30 450 -90 3 300 1.9 100
AA10S-64 2-1/2〞 64 77 10 150 30 450 -90 3 350 2.5 100
AA10S-76 3〞 76 89 10 150 30 450 -90 3 400 3.1 100
AA10S-89 3-1/2〞 89 103 10 150 30 450 -90 3 500 3.8 100
AA10S-102 4〞 102 116 10 150 30 450 -90 3 550 4.3 100
AA10S-127 5〞 127 142 10 150 30 450 -90 3 650 5.9 100
AA10S-152 6〞 152 168 10 150 30 450 -90 3 800 8.1 100
AA10S-203 8〞 203 228 10 150 30 450 -90 3 1000 13.6 60
AA10S-254 10〞 254 282 10 150 30 450 -90 3 1150 19 30
AA10S-305 12〞 305 335 10 150 30 450 -90 3 1250 25.4 30
AA10S-355 14〞 355 388 10 150 30 450 -90 3 1400 35.6 30

AA16S Series

Code No. Size (inch) I.D. (mm) O.D. (mm) W.P. B.P. N.P. (Kpa) Safety factor MBR (mm) Weight (Kg/m) LengthMax (m)
(bar) (psi) (bar) (psi)
AA16S-19 3/4〞 19 30 16 240 48 720 -90 3 90 0.8 100
AA16S-25 1〞 25 36 16 240 48 720 -90 3 100 1.0 100
AA16S-32 1-1/4〞 32 43 16 240 48 720 -90 3 130 1.2 100
AA16S-38 1-1/2〞 38 49 16 240 48 720 -90 3 150 1.4 100
AA16S-51 2〞 51 63 16 240 48 720 -90 3 300 1.9 100
AA16S-64 2-1/2〞 64 77 16 240 48 720 -90 3 350 2.5 100
AA16S-76 3〞 76 90 16 240 48 720 -90 3 400 3.1 100
AA16S-89 3-1/2〞 89 103 16 240 48 720 -90 3 500 3.8 100
AA16S-102 4〞 102 116 16 240 48 720 -90 3 550 4.8 100
AA16S-127 5〞 127 143 16 240 48 720 -90 3 650 6.5 100
AA16S-152 6〞 152 169 16 240 48 720 -90 3 800 8.3 100
AA16S-203 8〞 203 230 16 240 48 720 -90 3 1000 14.8 60
AA16S-254 10〞 254 283 16 240 48 720 -90 3 1150 21.2 30

AA20S Series

Code No. Size (inch) I.D. (mm) O.D. (mm) W.P. B.P. N.P. (Kpa) Safety factor MBR (mm) Weight (Kg/m) LengthMax (m)
(bar) (psi) (bar) (psi)
AA20S-19 3/4〞 19 30 20 300 60 900 -90 3 90 0.8 100
AA20S-25 1〞 25 36 20 300 60 900 -90 3 100 1.0 100
AA20S-32 1-1/4〞 32 43 20 300 60 900 -90 3 130 1.2 100
AA20S-38 1-1/2〞 38 49 20 300 60 900 -90 3 150 1.4 100
AA20S-51 2〞 51 63 20 300 60 900 -90 3 300 1.9 100
AA20S-64 2-1/2〞 64 77 20 300 60 900 -90 3 350 2.5 100
AA20S-76 3〞 76 90 20 300 60 900 -90 3 400 3.4 100
AA20S-89 3-1/2〞 89 103 20 300 60 900 -90 3 500 4.2 100
AA20S-102 4〞 102 117 20 300 60 900 -90 3 550 4.8 100
AA20S-127 5〞 127 145 20 300 60 900 -90 3 650 7.7 100
AA20S-152 6〞 152 172 20 300 60 900 -90 3 800 9.7 100
AA20S-203 8〞 203 230 20 300 60 900 -90 3 1000 15.4 60
