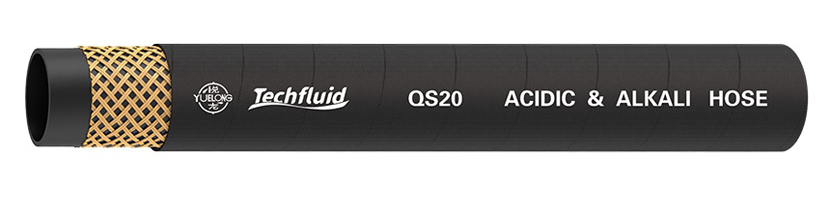

Lightweight Sulfuric Acid Chemical Hose Type: QS10/QS20

Lightweight Sulfuric Acid Chemical Hose
Application:

Lightweight sulfuric acid chemical hoses are designed to deliver sulfuric acid with less than 40% concentration in room temperature, as well as hydrochloric acid in less than 30% concentration, 15% sodium hydroxide solution or lower, and other chemical solutions in similar concentrations (not including nitric acid).

Construction:
  • Tube: Black composite rubber with excellent thermal and acid resistance
  • Reinforcement: High strength fiber cord
  • Cover: Black composite rubber in cloth texture, oil and abrasion resistance, thermal insulation, aging resistnace
Temperature Range:

-20℃~+70℃

Technical Parameters:
QS10 Series Technical Parameters:
Code No. Size I.D. O.D. W.P. B.P. Safety factor MBR Weight LengthMax
(inch) (mm) (mm) (bar) (psi) (bar) (psi) (mm) (Kg/m) (m)
QS10-8 5/16〞 8 15 10 150 30 450 3 48 0.18 100
QS10-10 3/8〞 10 16.5 10 150 30 450 3 60 0.21 100
QS10-13 1/2〞 13 20.5 10 150 30 450 3 78 0.32 100
QS10-19 3/4〞 19 28 10 150 30 450 3 114 0.56 100
QS10-25 1〞 25 35 10 150 30 450 3 150 0.79 100
QS10-32 1-1/4〞 32 43 10 150 30 450 3 200 1.19 60
QS10-38 1-1/2〞 38 50 10 150 30 450 3 200 1.38 50
QS10-45 1-3/4〞 45 56 10 150 30 450 3 250 1.55 50
QS10-51 2〞 51 63 10 150 30 450 3 300 1.71 50

QS20 Series

Code No. Size (inch) I.D. (mm) O.D. (mm) W.P. B.P. Safety factor MBR (mm) Weight (Kg/m) LengthMax (m)
(bar) (psi) (bar) (psi)
QS20-8 5/16〞 8 15 20 300 60 900 3 48 0.18 100
QS20-10 3/8〞 10 16.5 20 300 60 900 3 60 0.21 100
QS20-13 1/2〞 13 20.5 20 300 60 900 3 78 0.32 100
QS20-19 3/4〞 19 28 20 300 60 900 3 114 0.56 100
QS20-25 1〞 25 35 20 300 60 900 3 150 0.79 100
QS20-32 1-1/4〞 32 43 20 300 60 900 3 200 1.19 60
QS20-38 1-1/2〞 38 50 20 300 60 900 3 200 1.38 50
