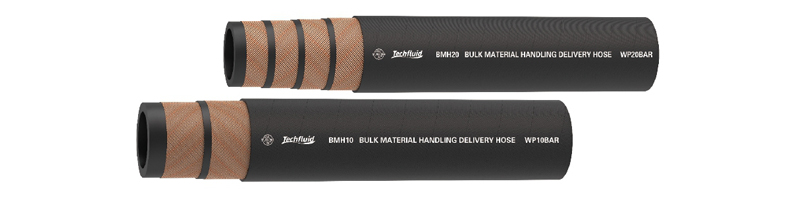

Bulk Material Handling Discharge Hose Type:BM10/BM20

Bulk Material Handling Discharge Hose
Bulk Material Handling Discharge Hose
Application:

Bulk material handling discharge hoses are widely used to transport dry cement and other grinding materials. The wear and tear level of the inner tube meets ISO4649 standards at ≤ 60mm³.

Temperature Range:

-35℃ ~ +75℃

Construction:
  • Tube: Black composite thickened rubber with an excellent abrasion and static resistance
  • Reinforcement: High strength synthetic fiber cord or steel cord
  • Cover: Black composite rubber in cloth texture, abrasion and aging resistance
BM10 Series Technical Parameters:
Code No. Size (inch)  I.D.  (mm) O.D.  (mm) W.P.  (bar) (psi) B.P.  (bar) (psi) Safety Factor MBR (mm) Weight (Kg/m) Max. Length (m)
BM10-51 2" 51 10 150 30 450 3 100
BM10-64 2-1/2" 64 10 150 30 450 3 100
BM10-76 3" 76 10 150 30 450 3 100
BM10-89 3-1/2" 89 10 150 30 450 3 61
BM10-102 4" 102 10 150 30 450 3 61
BM10-127 5" 127 10 150 30 450 3 61
BM10-152 6" 152 10 150 30 450 3 61
BM10-203 8" 203 10 150 30 450 3 61
BM20 Technical Parameters:
Code No. Size (inch)  I.D. (mm) O.D.  (mm) W. P. (bar) (psi) B. P. (bar) (psi) Safety Factor MBR (mm) Weight(Kg/m) Max. Length (m)
BMH20-51 2" 51 20 300 60 900 3 100
BMH20-64 2-1/2" 64 20 300 60 900 3 100
BMH20-76 3" 76 20 300 60 900 3 100
BMH20-89 3-1/2" 89 20 300 60 900 3 61
BMH20-102 4" 102 20 300 60 900 3 61
BMH20-127 5" 127 20 300 60 900 3 61
BMH20-152 6" 152 20 300 60 900 3 61
BMH20-203 8" 203 20 300 60 900 3 61
