Bulk Material Handling Hose (soft wall)Type: SM10/ SM20

Bulk Material Handling Hose (soft wall)
Bulk Material Handling Hose (soft wall)

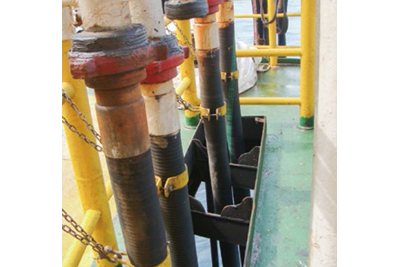

Application:

The soft wall bulk material handling hose is most often used to deliver barite, dry powdered cement and other abrasive materials with corrosive features. The inner tube features a soft wall.

Temperature Range:

-30℃~ + 100℃

SM10 SeriesSM10 Series
SM20 SeriesSM20 Series
Construction:
  • Tube: Black composite rubber made from butadiene styrene rubber and natural rubber with an excellent abrasion, acid, and alkali resistance
  • Reinforcement: High strength synthetic fiber cord
  • Cover: Black composite rubber composed of isoprene rubber and butadiene rubber, resistant to abrasion, ozone, weather, and more.
SM10 Series Technical Parameters:
I.D. (inch) (mm)  O.D. (inch) (mm)  W.P. (bar) (psi)  B.P. (bar) (psi)  Safety Factor  MBR (mm) Weight (Kg/m)  Max. Length (m)
3/4 19 1.38 35 10 150 40 600 4 60 0.8 80
1 25 1.61 41 10 150 40 600 4 75 1.2 80
1-1/4 32 1.89 48 10 150 40 600 4 110 1.4 80
1-1/2 38 2.13 54 10 150 40 600 4 120 1.6 80
2 51 2.72 69 10 150 40 600 4 350 2.2 80
3 76 3.70 94 10 150 40 600 4 500 3.1 80
4 102 4.80 122 10 150 40 600 4 650 4.5 80
5 127 5.83 148 10 150 40 600 4 800 5.8 80
6 152 6.85 174 10 150 40 600 4 950 7.3 80
8 203 9.09 232 10 150 40 600 4 1400 12.1 80
SM20 Series
I.D. (inch) (mm)  O.D. (inch) (mm)  W.P. (bar) (psi)  B.P. (bar) (psi)  Safety Factor  MBR (mm) Weight (Kg/m)  Max.Length (m)
3/4 19 1.38 35 20 300 80 1200 4 60 0.8 100
1 25 1.61 41 20 300 80 1200 4 75 1.2 100
1-1/4 32 1.89 48 20 300 80 1200 4 110 1.4 100
1-1/2 38 2.13 54 20 300 80 1200 4 120 1.6 100
2 51 2.72 69 20 300 80 1200 4 350 2.2 100
3 76 3.74 95 20 300 80 1200 4 500 3.3 100
4 102 4.96 126 20 300 80 1200 4 650 4.8 100
5 127 5.98 152 20 300 80 1200 4 800 6.6 100
6 152 7.01 178 20 300 80 1200 4 950 8.2 100
