Bulk Material Handling Hose (Hard Wall)

product list

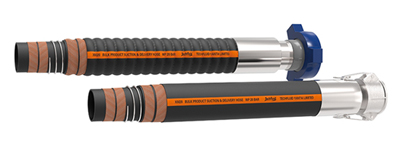

Bulk Material Handling Hose (Hard Wall) Type：BM10S/BM20S

Application:

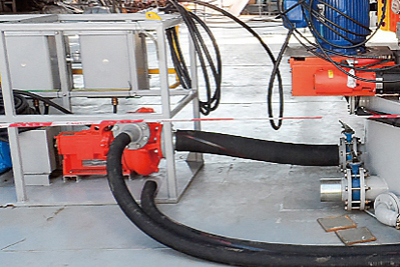

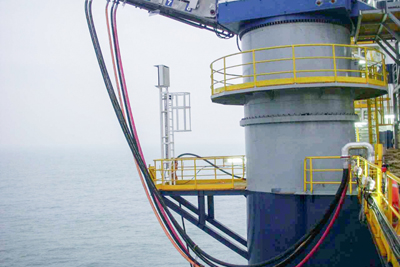

The hard wall bulk material handling hose is widely used to deliver barite, dry powder cement and other abrasive materials with corrosive features. The inner tube features a hard wall.

Temperature Range:

-30℃ ~ + 100℃

Construction:

Tube: Black composite rubber made from butadiene styrene rubber and natural rubber with an excellent abrasion, acid and alkali resistance
Reinforcement: High strength synthetic fiber cord
Cover: Black composite rubber composed of isoprene rubber and butadiene rubber, resistant to abrasion, ozone, weather, and more.

XM10 Series Technical Parameters:

I.D. (inch) (mm)		O.D. (inch) (mm)		W.P. (bar) (psi)		B.P. (bar) (psi)		Safety Factor	MBR (mm)	Weight (Kg/m)	Max. Length (m)	N.P. (Kpa)
1	25	1.61	41	10	150	40	600	4	100	1.3	100	-90
1-1/4	32	1.93	48	10	150	40	600	4	130	1.6	100	-90
1-1/2	38	2.17	55	10	150	40	600	4	150	1.9	100	-90
2	51	2.72	69	10	150	40	600	4	400	2.5	100	-90
3	76	3.70	94	10	150	40	600	4	500	3.7	100	-90
4	102	4.96	126	10	150	40	600	4	650	6.1	100	-90
5	127	6.02	153	10	150	40	600	4	800	8	100	-90
6	152	7.01	178	10	150	40	600	4	900	9.9	100	-90
8	203	9.37	238	10	150	40	600	4	1100	23	100	-90

XM20 Series

I.D. (inch) (mm)		O.D. (inch) (mm)		W.P. (bar) (psi)		B.P. (bar) (psi)		Safety Factor	MBR (mm)	Weight (Kg/m)	Max. Length (mm)	N.P. (Kpa)
1	25	1.61	41	20	300	80	1200	4	100	1.3	100	-90
1-1/4	32	1.93	48	20	300	80	1200	4	130	1.6	100	-90
1-1/2	38	2.17	55	20	300	80	1200	4	150	1.9	100	-90
2	51	2.87	73	20	300	80	1200	4	400	3	100	-90
3	76	3.90	99	20	300	80	1200	4	500	4.5	100	-90
4	102	5.12	130	20	300	80	1200	4	650	6.8	100	-90
5	127	6.18	157	20	300	80	1200	4	800	9	100	-90
6	152	7.16	182	20	300	80	1200	4	950	11	100	-90
