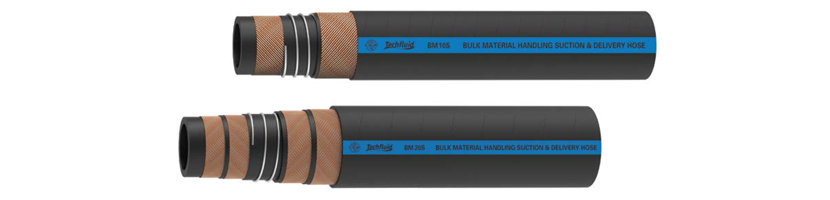

Bulk Material Handling Suction & Discharge Hose Type:BM10S/BM20S

Bulk Material Handling Suction & Discharge Hose
Bulk Material Handling Suction & Discharge Hose

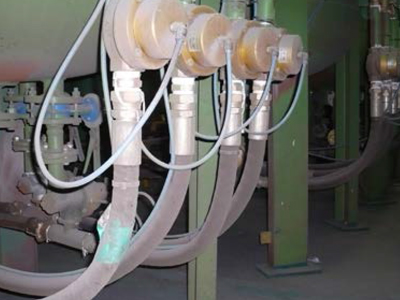

Application:

The bulk material handling suction & discharge hose is used to deliver highly abrasive materials with a maximum negative pressure of -0.9bar, and the wear and tear level of the inner tube meets ISO 4649 standards at ≤ 60mm³.

Temperature Range:

-25℃ ~ +75℃

Construction:
  • Tube: Black composite rubber with thickened wall and excellent abrasion resistance
  • Reinforcement: High strength synthetic fiber cord and helix steel wire, optional static resistant metal wire to meet customer requirements
  • Cover: Black composite rubber in cloth texture, abrasion resistant, aging resistant and more.
BM10S Series Techncial Parameters:
Code No. Size (inch)  I.D. (mm)  O.D. (mm)  W.P. (bar) (psi)  B.P. (bar) (psi)  Safety Factor MBR (mm)  Weight (Kg/m)  Max. Length (m)  N.P. (Kpa)
BM10S-38 1/2" 38 53 10 150 30 450 3 600 1.7 100 -90
BM10S-51 2" 51 66 10 150 30 450 3 600 2.4 100 -90
BM10S-76 3" 76 93 10 150 30 450 3 600 3.8 100 -90
BM10S-89 3-1/2" 89 106 10 150 30 450 3 600 4.4 100 -90
BM10S-102 4" 102 120 10 150 30 450 3 600 5.7 100 -90
BM10S-127 5" 127 146 10 150 30 450 3 600 7.2 100 -90
BM10S-152 6" 152 172 10 150 30 450 3 600 9.8 100 -90
BM20S Series
 Code No. Size (inch)  I.D. (mm)  O.D. (mm)   W.P.   B.P.  Safety Factor  MBR (mm)  Weight (Kg/m)  Max. Length (m)  N.P. (Kpa)
(bar) (psi) (bar) (psi)
BM20S-38 1/2" 38 53 10 150 30 230 3 230 1.7 100 -90
BM20S-51 2" 51 67 10 150 30 230 3 230 2.4 100 -90
BM20S-76 3" 76 94 20 300 60 360 3 360 4.1 100 -90
BM20S-89 3-1/2" 89 107 20 300 60 450 3 450 4.4 100 -90
BM20S-102 4" 102 121 20 300 60 540 3 540 5.7 100 -90
BM20S-127 5" 127 149 20 300 60 675 3 675 7.2 100 -90
BM20S-152 6" 152 175 20 300 60 900 3 900 9.8 100 -90
